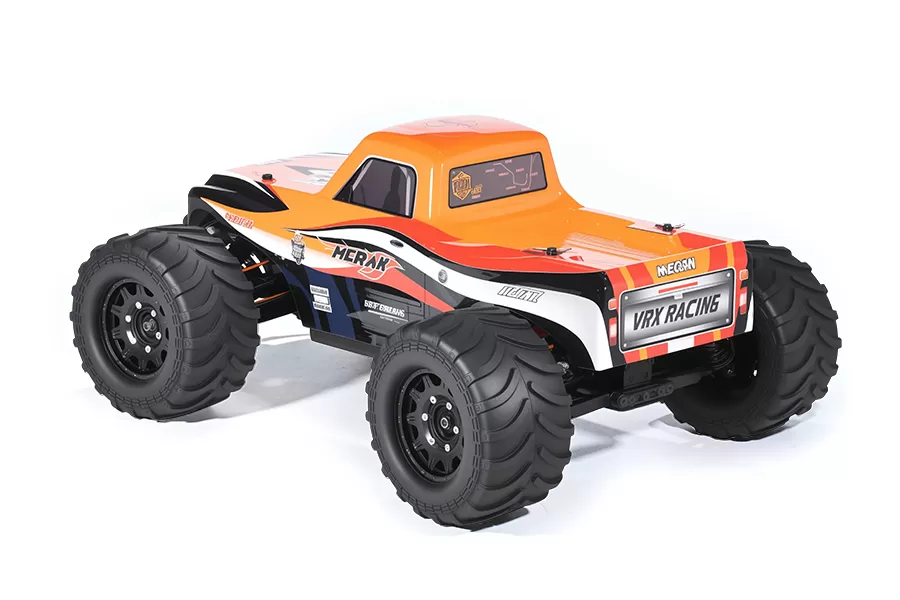

As a new member of the VRX family, we are full of anticipation for the Merak. It comes with advanced 4WD system, flexible handling. The exquisite appearance is equipped with a new body, clear textured tire design, strong grip, suitable for various terrains. New Bumper has strong buffering force and can be equipped with LED lights to bring us a nice visual experience.Alum front/rear Susp arm holders are well-protect the performance of the car.Wherever there is Merak, there are memories.
Length: 420mm
Width: 330mm
Height: 162mm
Wheelbase: 290/295mm
Tyre: ø 128 x 68mm(10742)
Tyre: ø 121 x 62mm(10741)
Gear Ratio: 11.2:1
As a new member of the VRX family, we are full of anticipation for the Merak. It comes with advanced 4WD system, flexible handling. The exquisite appearance is equipped with a new body, clear textured tire design, strong grip, suitable for various terrains.
New Bumper has strong buffering force and can be equipped with LED lights to bring us a nice visual experience.Alum front/rear Susp arm holders are well-protect the performance of the car.Wherever there is Merak, there are memories.
Featuring a rugged and sturdy design, the car is tall and the tires are wide and have strong grip, making it suitable for various complex terrains.
Adjustable High-quality body post
Alum Front/Rear Susp. Arm Holder
Powerful Hydraulic Shock Absorbers
Front High Impact Bumper (Led lights for Option)

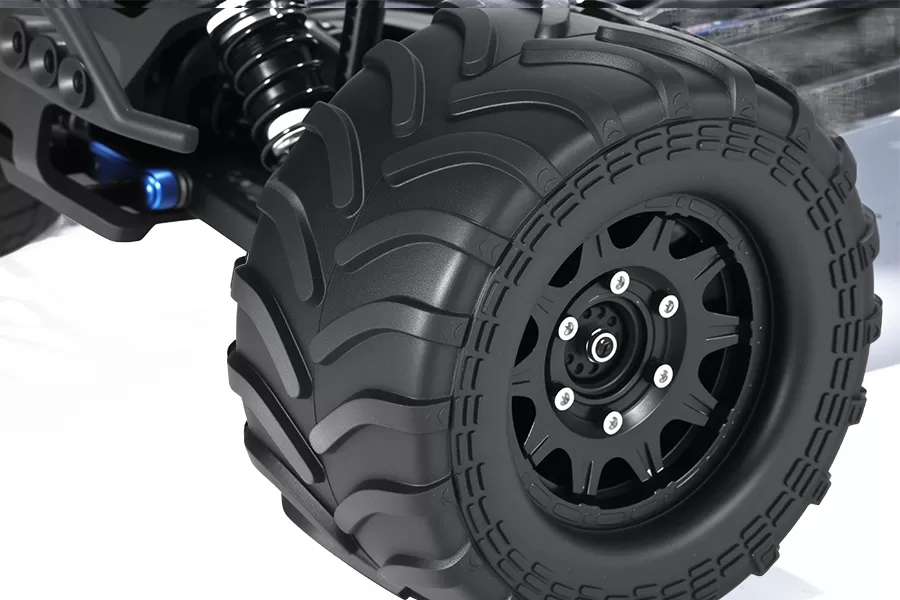

Multi-level structural Nice Tires with High Grip
1x 1/10 MERAK Truck
1x Transmitter and receiver sets
1x HB3 Balanced charger
1x instruction manual
4 x AAA Battery for the transmitter
2.4GHz Proportional Radio System
3650 3300kv Brushless motor
Waterproof 45A Brushless ESC Speed Control
Waterproof 3kg Steering Servo
Voltz 2s 3300mah Lipo Battery
Big Bore Oil Filled Adjustable Shock
Unique Gearbox Design For Low CG
Front Universal CVD Driveshafts
4WD Shaft Drive
Fully Adjustable Suspension Including Droop,Camber,Toe-in,Wheelbase Etc
Sliper For Drivetrain Damage Protection
Moulded Tub Chassis
Lightweight High Impact Arms

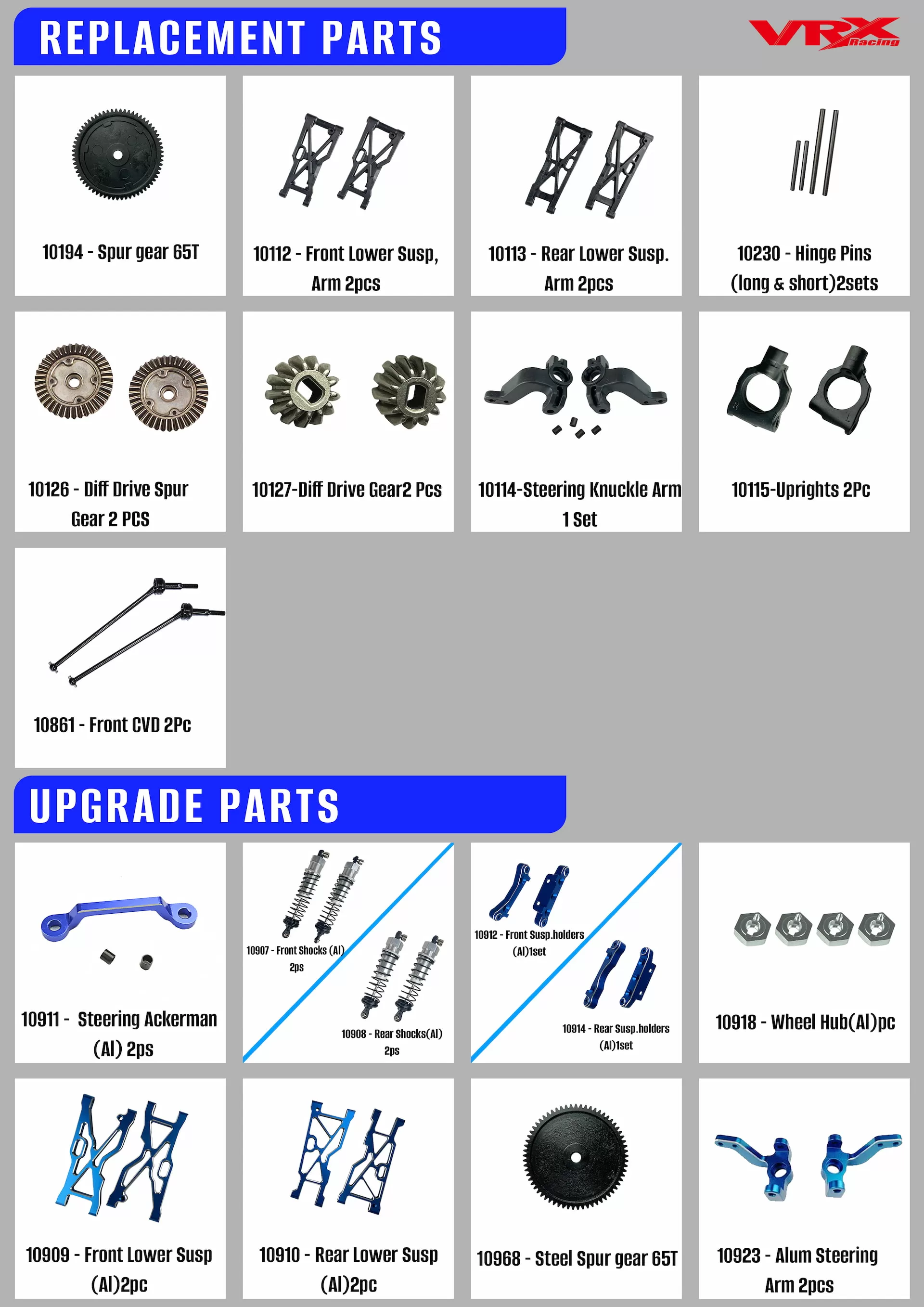

Wide Range Of Option Parts Available
Product Length | 16.54"（420mm) | Speed Control | 45A |
Product Weight | 8.82 Ib (4KG) | Spur gear | 65T |
Product Width | 12.99" (330MM) | Suspension | Independent |
Radio | 2.4G | Top speed | 55+ |
Scale | 1:10 | Vehicle Size | Standard |
Servo | 3KG | Vehicle Type | Truck |
Shock Type | Oil-filled, coilover spring | wheelbase | 11.42/11.61" (290/295mm) |
Ball bearing | Full ball bearing | Chassis | Plastic |
Battery | 2S 3300MAH lipo | Completion Level | Ready to run |
body | Pre-painted Polyvinyl Chloride | Connector Type | Deans plug |
Distance of remote control | 100-150M | Drive Type | Forward, brake, Reverse |
Charger | Balanced charger | Motor Size | 3650 3300KV motor |
Pinion gear | 17T | Power Type | Electric |
Product Height | 6.38" ( 162mm) | Drive train | 4WD |
Operator Skill Level | Beginner | Play time | 10-15 minutes/cycle |

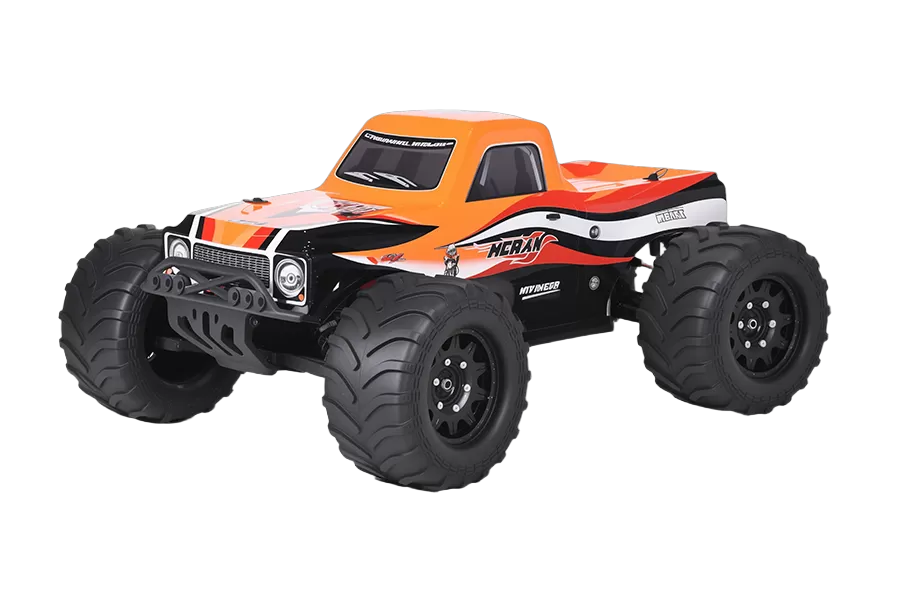

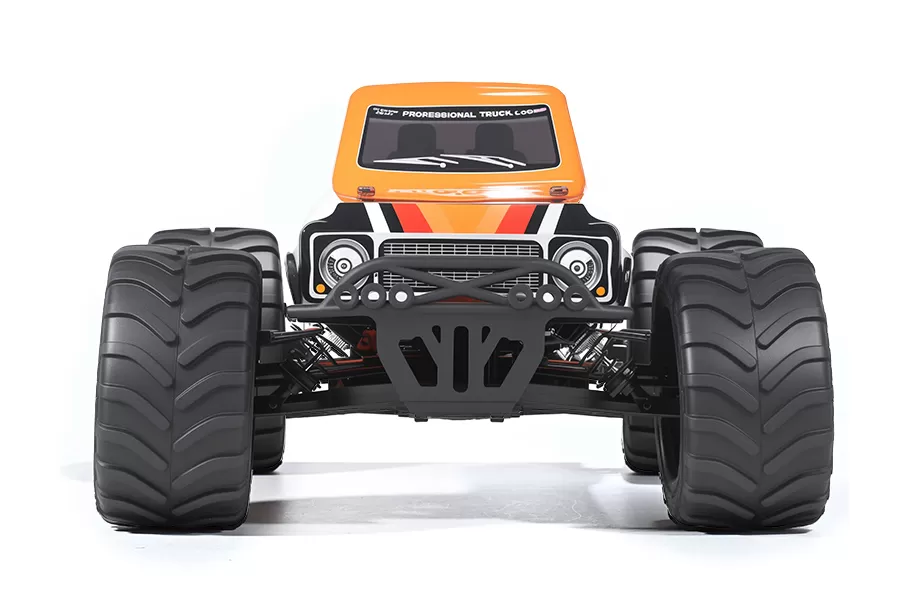

From the front, the overall structure is exquisite, with delicate details. The new bumper is more flexible and has strong anti-collision ability, which effectively protects the driving performance of the car.

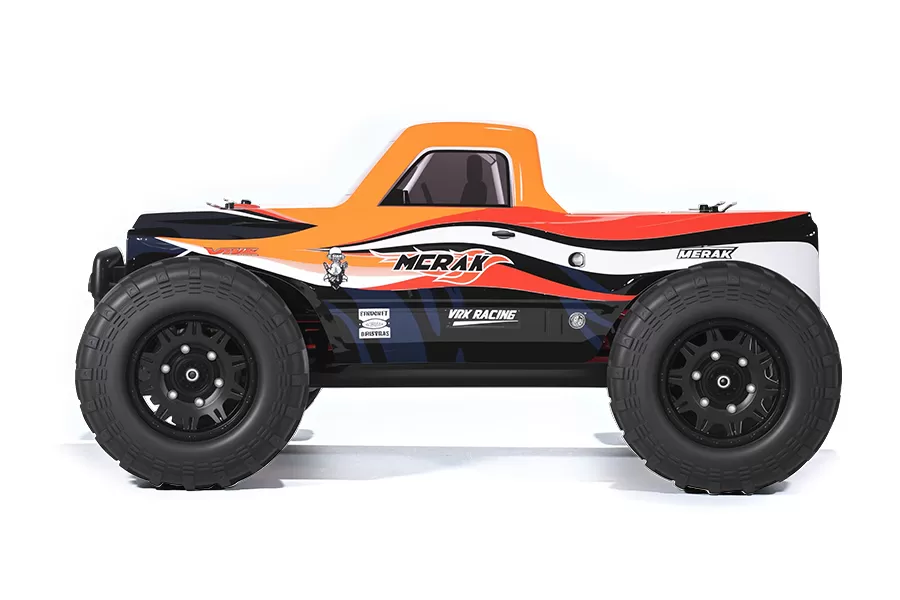

Featuring a rugged and sturdy design, the car is tall and the tires are wide and have strong grip, making it suitable for various complex terrains.

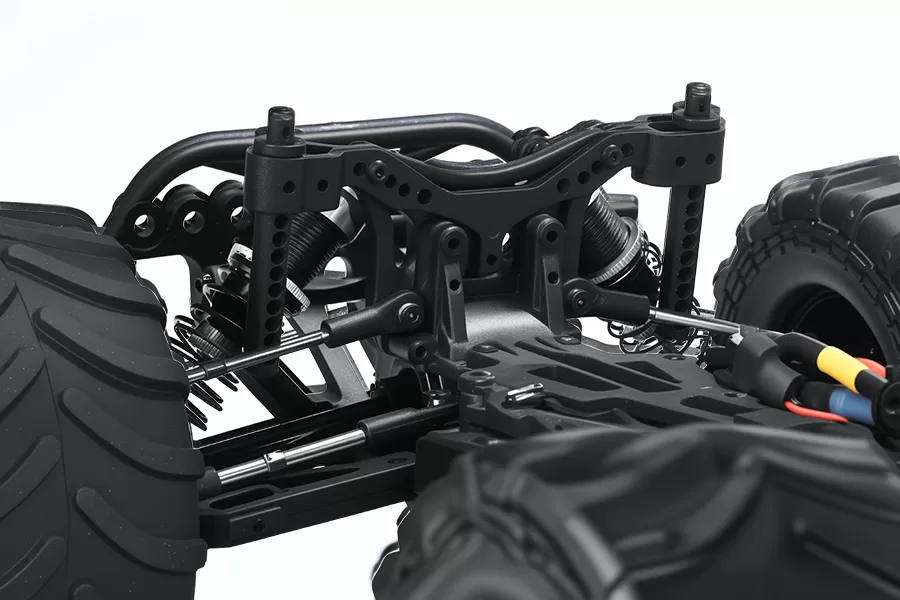

Adjustable body post can be used to adjust the height/width and position of the car body to adapt to different body types. By adjusting the ground clearance of the car body, it can adapt to different road surfaces to ensure balance and stability during driving.

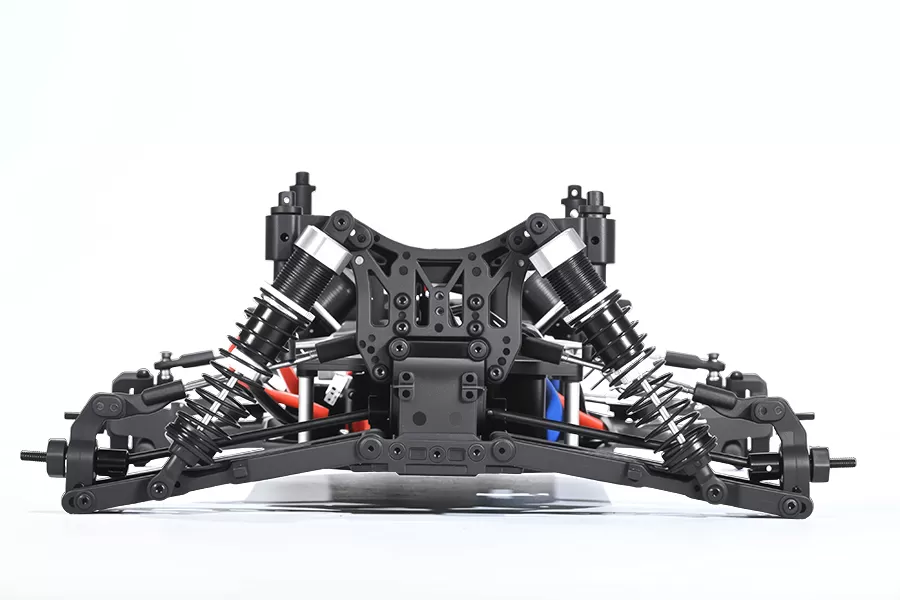

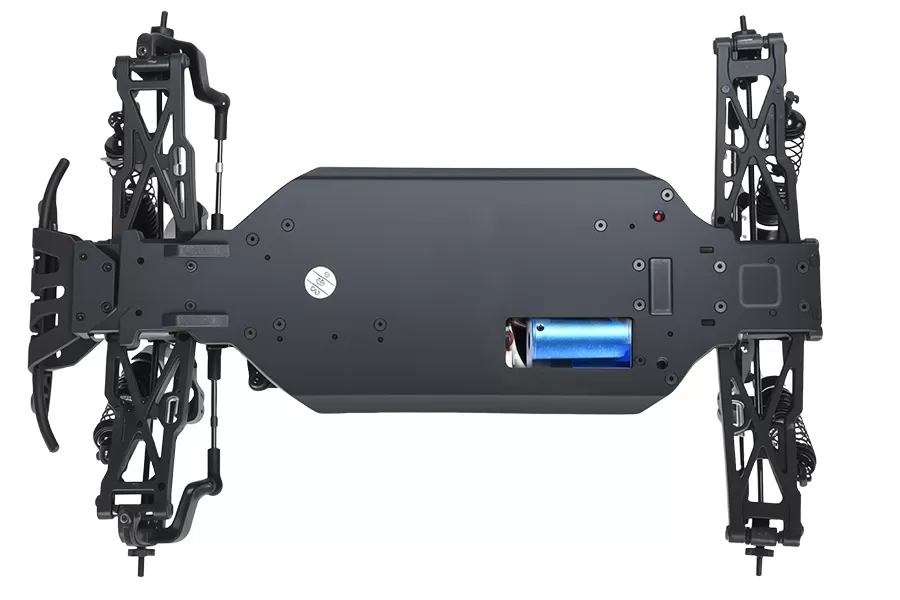

The chassis plate is made of wear-resistant nylon material and is formed in one piece. Alloy front/rear suspension holders and plastic Susp,Arm to ensure durability during off-road operations.
10003 and 10124

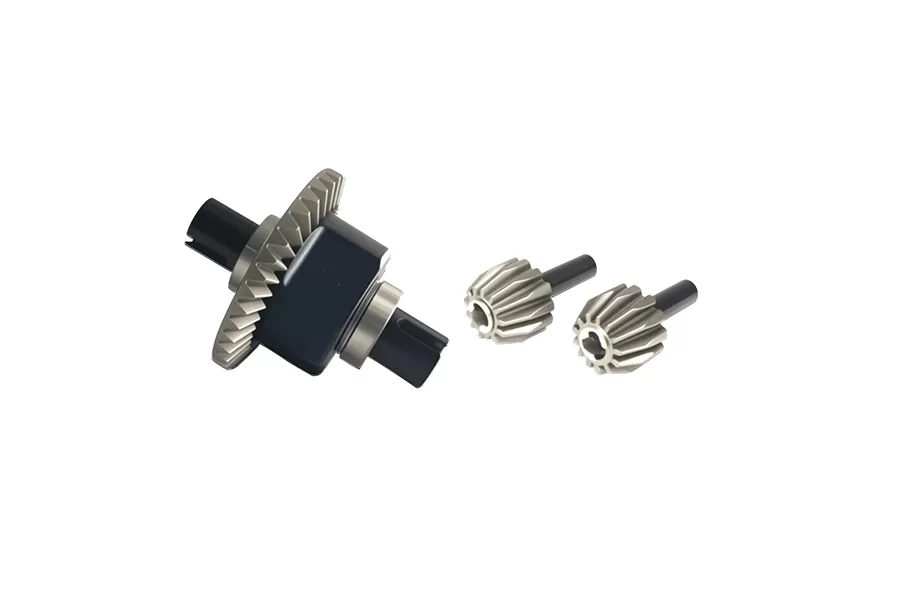

The SMASH is equipped with a new Diff. gearbox front and rear. The differentials are improved with metal internal gears and cross pins to better handle any future power upgrades.
