3KG Digital Waterproof Servo
Designed for harsh environments, it adopts PA66+30% fiberglass housing and fully sealed structure, with excellent waterproof performance, suitable for wet, dusty and other complex scenes. The core is equipped with an iron core motor and a POM plastic gear set (gear ratio 275:1), which provides efficient power output with a maximum torque of 5 kgf-cm (5V), sensitive response and accurate and stable positioning.

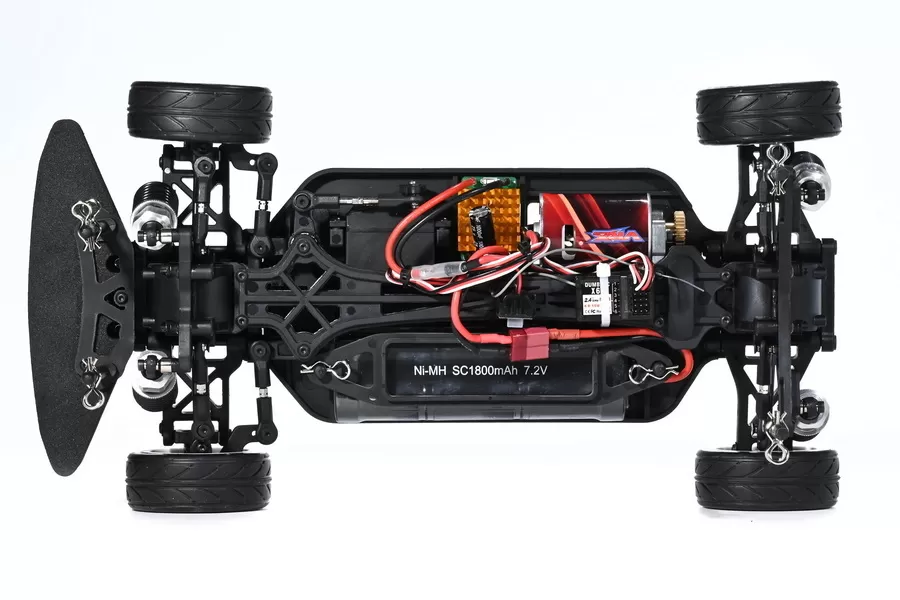

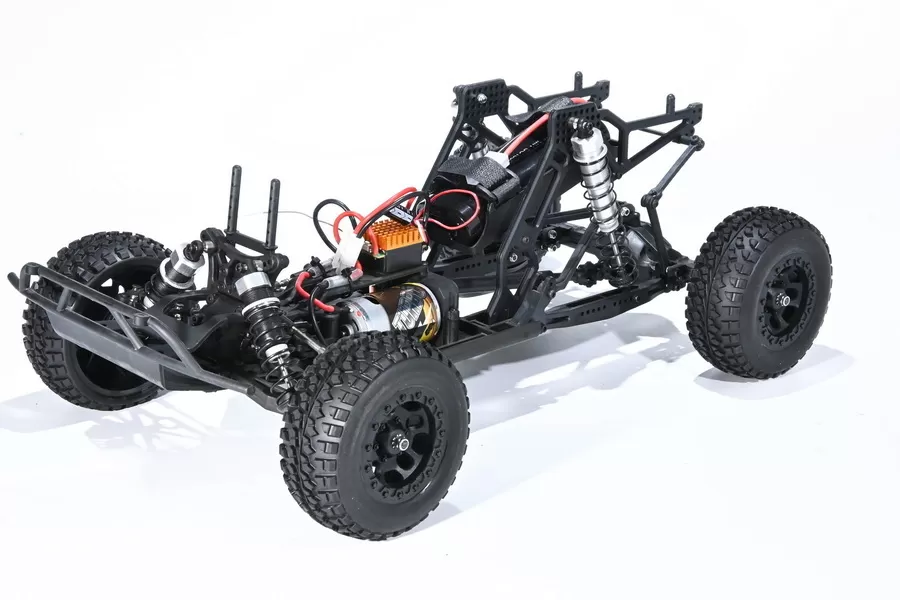

Perfectly matching 1/10 scale RC cars.
Specification
Model number: H0005
Operating voltage: 5V DC
Static current: ≤12 mA
Blocking current: ≤1.6 A
Operating Temperature: -10℃~+50
Weight: 37g±0.5g
Cable configuration: 295mm PVC cable, JR 3Pin connector (signal/red VCC/black GND)
Lifespan: 100,000 cycles
-Durable POM Gear
-Dual Ball Bearings
-High Quality Iron Core Motor
-PA66+30% fiberglass Case
-More Stable,Super Long Working Life
1 x 3KG Waterproof Servo
- VRX RH1011 Sword MT Brushed
- VRX RH1016 Spirit EBD Brushed
- VRX RH1027 XBL EBD Brushed
- VRX RH1065 Smash MT Brushed
- VRX RH1067 Spirit EBD Brushed
- VRX RH1069 Merak MT Brushed
- VRX RH1071 Mizar two speed Brushed
- VRX RH1073 Megrez two speed Brushed
- VRX RH815 BLAST BX EBD Brushed
