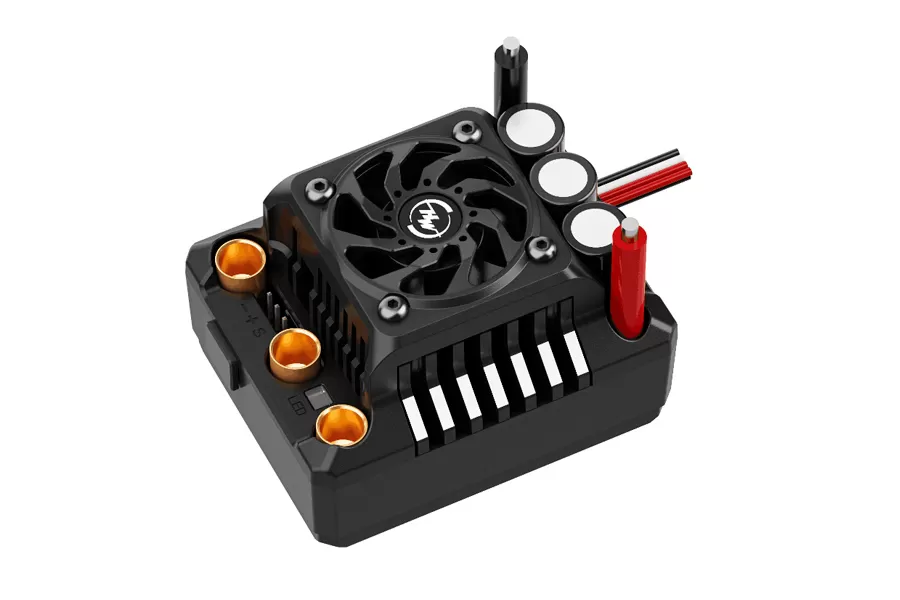

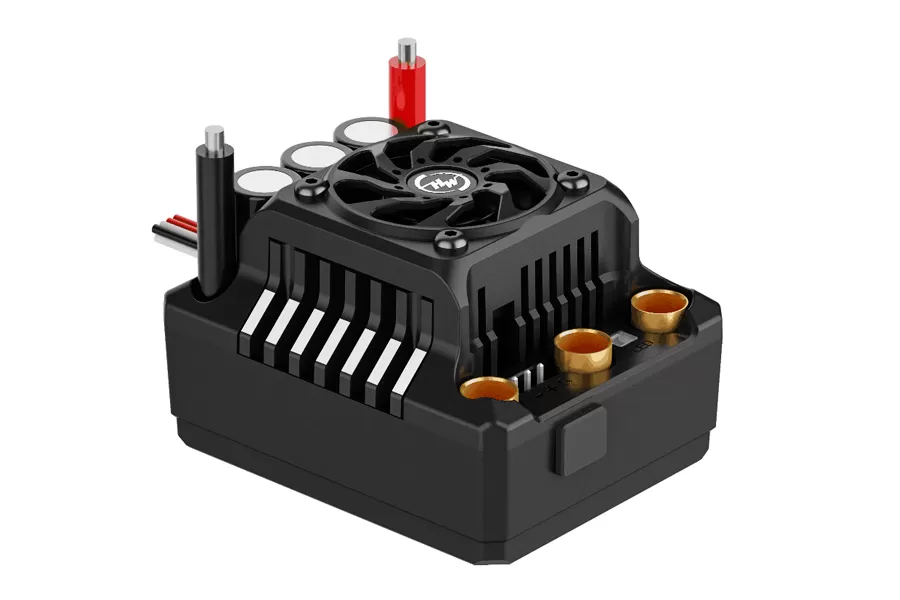

Specially designed for competitive RC racers and serious hobbyists, the 150A Brushless ESC delivers instant torque, ultra-smooth throttle response, and unmatched durability to dominate the track. Built with race-proven technology, this electronic speed controller is your key to unlocking the full potential of high-KV brushless motors.
SPECIFICATIONS
Model Number: H0018
Cont. Current/Burst Current: 150A/950A
Sensorless Brushless Motor: For 3-6S Lipo or 9-18 Cells NiMh
Suitable Car: 1:5 1:8 scale Truck/Buggy/Monster Truck
Resistance: 0.00035Ω
Battery: 3~6 cells Lipo /9~18 cells NiMh
BEC Output: 6.0V/7.4V 6A (Switch mode )
Dimensions/Weight: 60 x 48 x 36.8mm, 173.5g
Wate-rproof and dust-proof for all -weather races.
Specially designed for RC Car with excellent start-up.
Acceleration and linearity features.
Compatible with sensorless brushless motor.
Mulitple protection features, low voltage cut-off protection.
For lithium or nickel battery, over-heatprotection/throttle.
Signal loss protection/motor blocked protection.
The strong resistant current capability.
Excellent heat dissipation.
Automatics shutdown after two minutes of low-voltage protection, and automatic shutdown without operation for 5 minutes in other cases.
Easily programmed and compatible with pocket-size program card.
1 x 150A ESC with deans plug
1 x User Manual
