Specially designed for competitive RC racers and serious hobbyists, the 80A Brushless ESC delivers instant torque, ultra-smooth throttle response, and unmatched durability to dominate the track. Built with race-proven technology, this electronic speed controller is your key to unlocking the full potential of high-KV brushless motors.
SPECIFICATIONS
Model Number: 85261
Cont. Current/Burst Current : 80A/480A
Sensorless Brushless Motor: For 2S Lipo or 6 Cells NiMh:
1. On-road : 3665-size or smaller motor with the KV < 6000
2. Off-road: Buggy/monster: 3665-size or smaller motor with the KV <4000
For 3S Lipo or 9 Cells NiMh:
1. On-road : 3665-size or smaller motor with the KV < 4000
2. Off-road: Buggy/monster: 3660-size or smaller motor with the KV < 3000

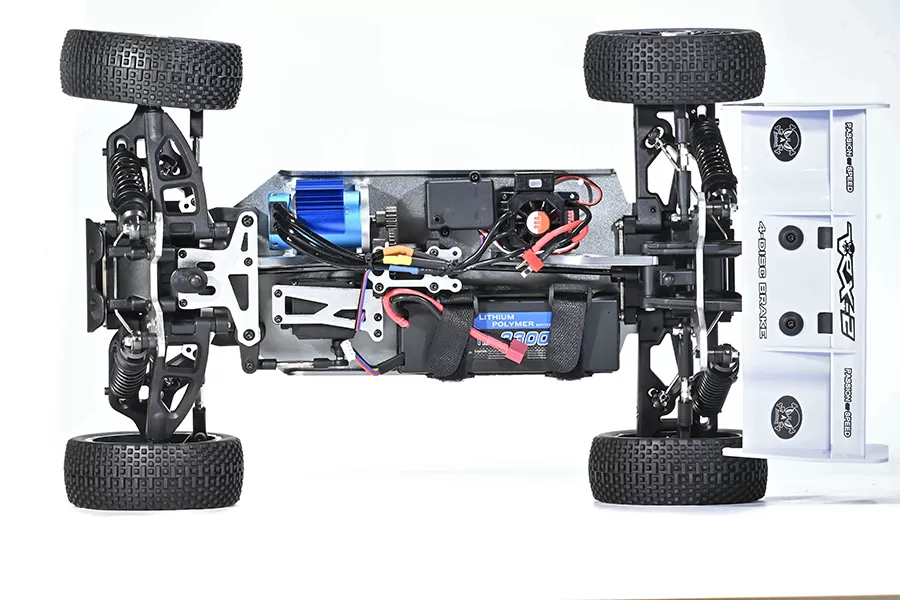

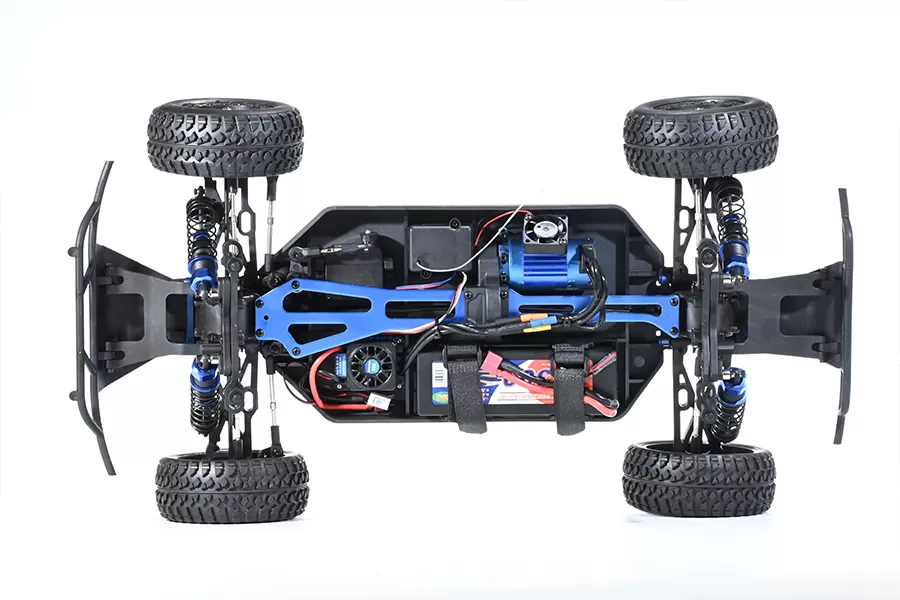

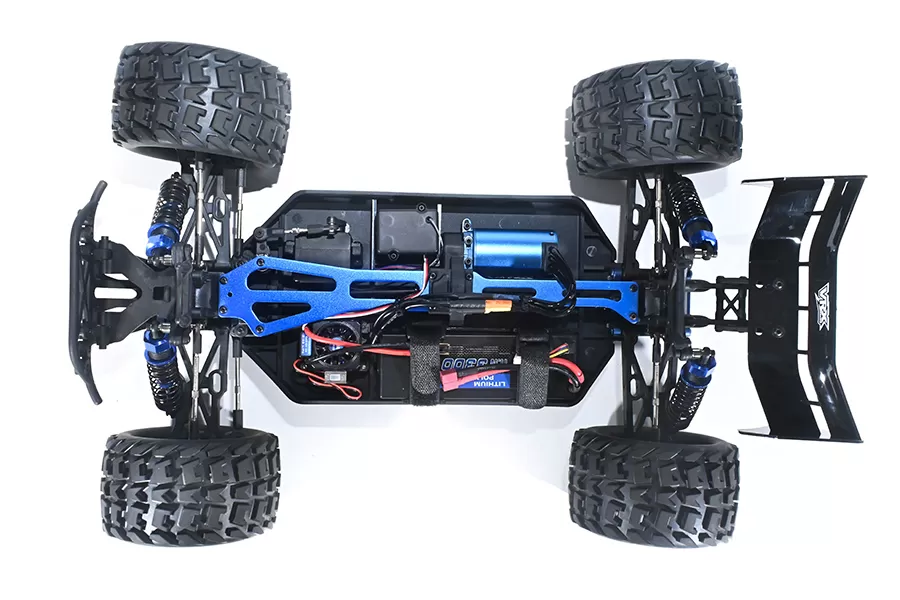

Suitable Car: 1:8 car
Resistance : 0.0005Ω
Battery: 2~3 cells Lipo /4~9 cells NiMh
BEC Output: 6.0V/7.4V/8.4V/ 6A (Switch mode )
Dimensions/Weight: 50 x 35 x 34mm, 96g
Wate-rproof and dust-proof for all -weather races.
Specially designed for RC Car with excellent start-up.
Acceleration and linearity features.
Compatible with sensorless brushless motor.
Mulitple protection features, low voltage cut-off protection.
For lithium or nickel battery, over-heatprotection/throttle.
Signal loss protection/motor blocked protection.
The strong resistant current capability.
Excellent heat dissipation.
Automatics shutdown after two minutes of low-voltage protection, and automatic shutdown without operation for 5 minutes in other cases.
Easily programmed and compatible with pocket-size program card.
1 x 80A ESC with deans plug
1 x User Manual
