SMASH 1/10 Scale 4WD Off-road Electric RC Truggy 2.4G Brushless High Speed RTR #RH1066
Specifications:
Length: 440mm
Width: 330mm
Height: 190mm
Wheelbase: 290/295mm
Tyre: ø 115 x 55mm
Gear Ratio: 11.2:1
overview
The latest 1/10 Smash truggy released in 2025 is an upgraded version of our very popular model Blade.
It features new rubber tires and exquisite body design, alloy Front/Rear Susp. arm Holder, hydraulic shock absorbers as well as alum. upper plate, making the car more stable and drop resistant.
Equipped with 2.4GHz Proportional Radio System, playing a Brushless Smash, you are the most beautiful guys on the street.
Featuring reinforced alloy chassis, adjustable wheelbase & slipper clutch for smooth power delivery. High-performance shocks, metal-gear diffs & 115mm rugged tires conquer any terrain. Precision steering, customizable body mounts & vibration-damped motor ensure unstoppable performance!
- Adjustable High-quality body post
- Alloy Alum Front/Rear Susp. Arm Holder and Upper plate
- Powerful Hydraulic Shock Absorbers
- Waterproof ESC and Receiver Box
- Fully sealed Chassis plate design
- Front High Impact Bumper (Led lights for Option)
- Multi-level structural Nice Tires with High Grip
- 1 x 1/10 SMASH Truck
- 1 x Transmitter and Receiver Sets
- 1 x V3 Balance Charger
- 1 x Instruction Manual
4 x AAA Battery for the transmitter
features
Product specifications
| Product Length | 17.32" ( 440mm) |
Product Height |
7.48" (190 mm) |
|
Product Width |
12.99" ( 330mm) |
Speed Control |
45A |
|
Body |
Pre-painted polyvinyl chlorid |
Product Weight |
8.6 lb (3.9kg) |
|
Radio |
2.4G |
Top Speed |
55+ |
|
Charger |
Balance charger |
Motor |
3650 3300KV |
|
Chassis |
Plastic |
Receiver |
Included |
|
Completion Level |
Ready-To-Run |
Scale |
1/10 |
|
Connector Type |
Deans plug |
Servos |
3KG |
|
Drive Type |
Forward/Brake/Reverse |
Shock Type |
Composite,0ll-Filled.Coilover Springs |
|
Gear Pitch |
0.6 MOD |
Spur Gear |
65T |
| Battery |
2S 3300Mah |
Suspension |
Independent |
| Pinion Gear |
17T |
Vehicle size |
Standard |
| Power Type |
Electric |
Vehicle Type |
truggy |
|
Play Time |
10-15 minutes/cycle |
Wheelbase |
11.42/11.61”(290/295 mm) |
Product details
1/10 EP SMASH Chassis comes with a 4WD system. Adjustable wheelbase on hub carrier, unique steering system with front universal joint shafts, reinforced alum materials upper plate and front & rear suspension holders to stiff the chassis plate.
Aluminum motor mount can better secure the motor, reducing vibration and heat. Slipper system on spur gear avoilding damage.The entire power system is well-protected for dependable performance on all terrain.
Adjustable body post can be used to adjust the height/width and position of the car body to adapt to different body types.
By adjusting the ground clearance of the car body, it can adapt to different road surfaces to ensure balance and stability during driving.
The sturdy structure and precise installation position of the rear axle seat ensure the stability of the vehicle during driving, and also provide accurate steering feedback.
The front and rear of shock absorber of the SMASH are equipped with high quality aluminum cover and adjustment ring, which can absorband alleviate the impact and vibration received by the vehicle during driving, thereby improving the vehicle's handling and stability.
The widened tires with a size of 115 x 55mm make the car more stable and domineering during driving.
The unique pattern design increases the friction between the tire and the ground, and the multi-level structural characteristics enhance the durability and wear resistance of the tire, extending its service life.

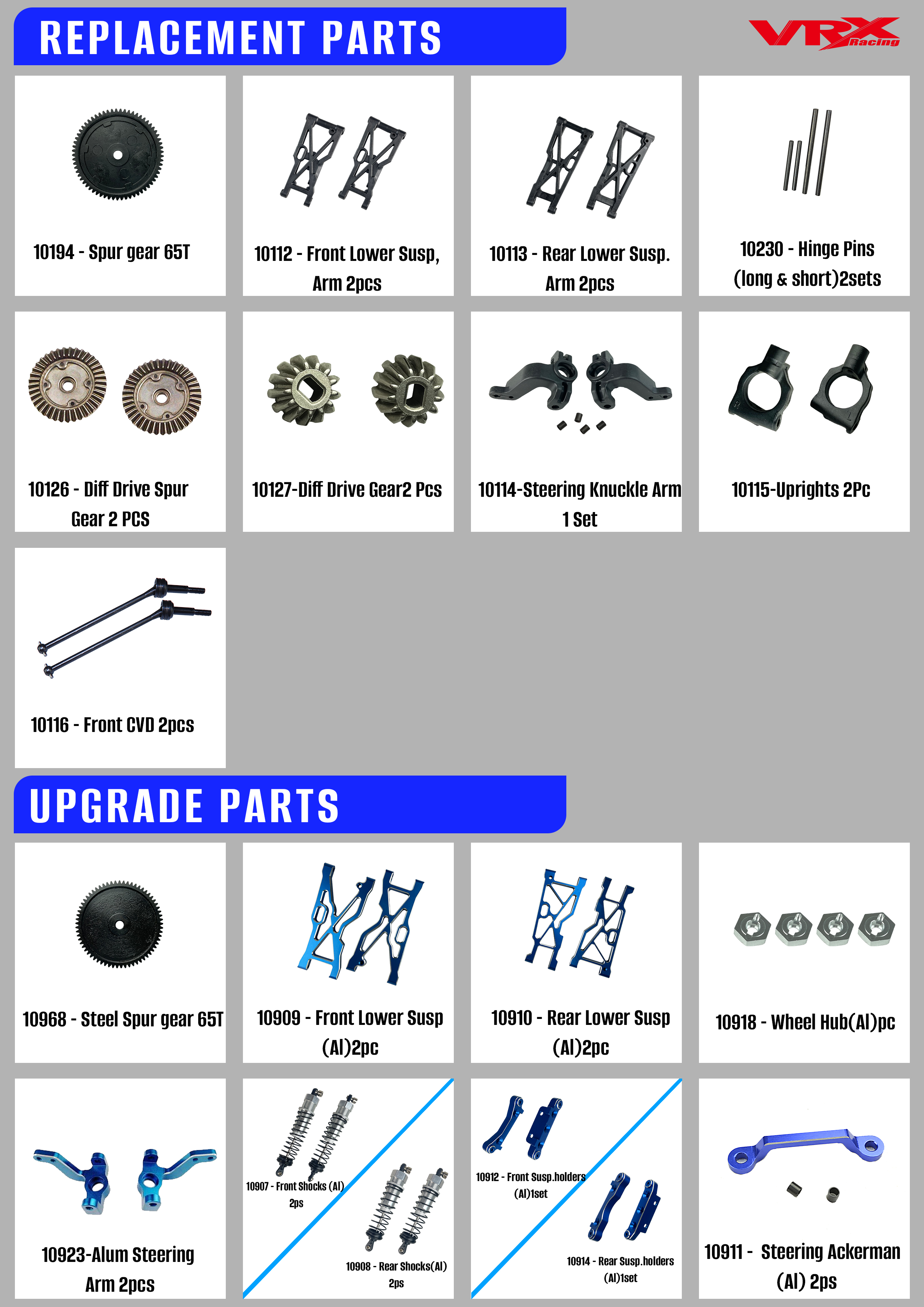

10003 and 10124
The SMASH is equipped with a new Diff. gearbox front and rear.
The differentials are improved with metal internal gears and cross pins to better handle any future power upgrades.
