In hobby-grade electric RC cars, the battery connector is far more than a small accessory — it is the critical bridge that carries high current from your LiPo battery to the ESC and motor. A poorly chosen or low-quality connector can create resistance, cause voltage drop, generate heat, and limit the true performance of even the most powerful brushless system. Understanding which RC battery connectors to use is essential for achieving maximum speed, reliable throttle response, and long-term safety in your hobby-grade RC cars.

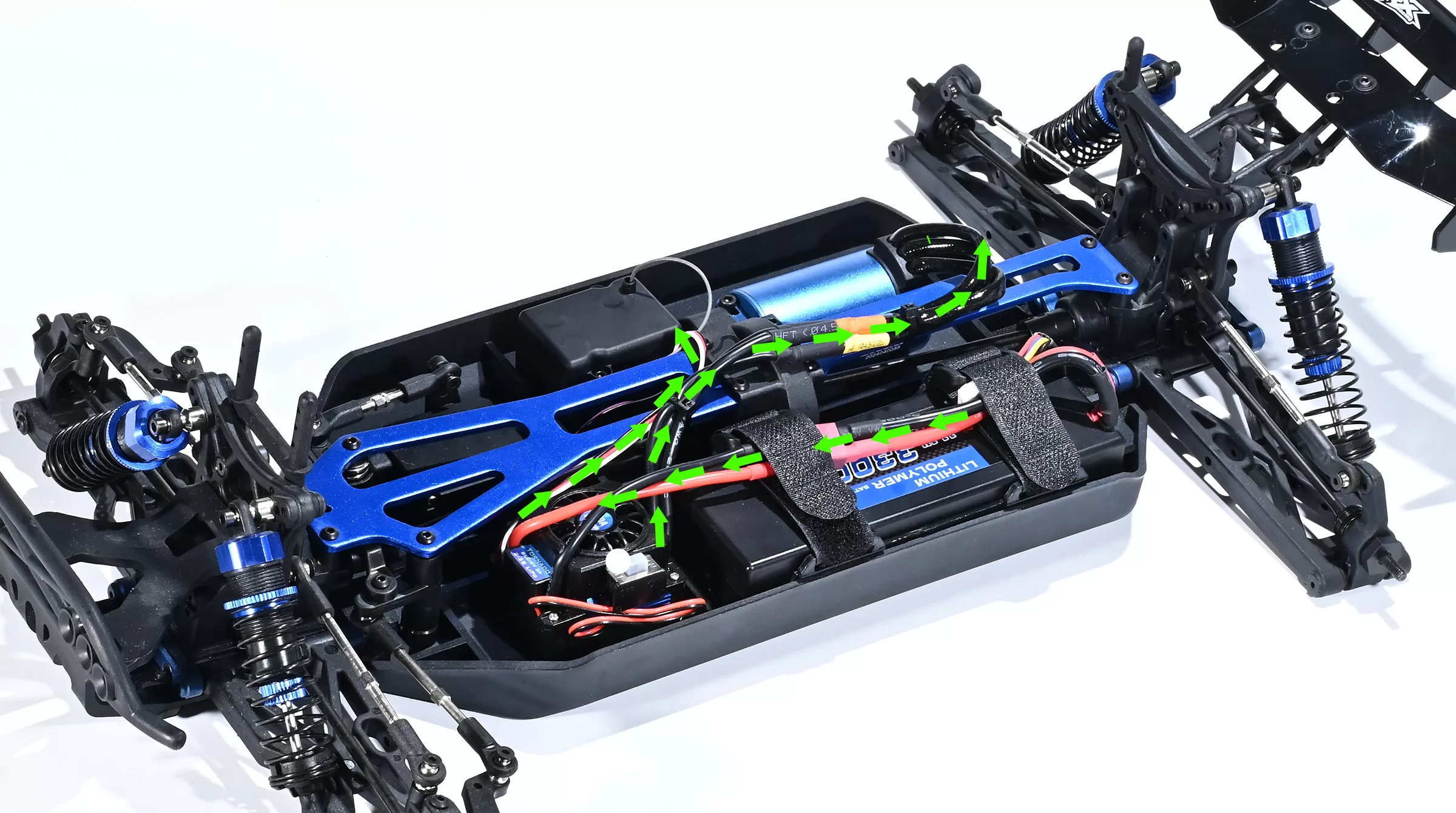

Many RC enthusiasts focus heavily on choosing powerful brushless motors, high-C LiPo batteries, and advanced ESCs, yet overlook the connector that links them all together. In reality, the battery connector is a potential bottleneck in the entire power delivery chain. Current must flow smoothly from the battery through the connector to the ESC and finally to the motor. Any weakness here directly affects how efficiently that power reaches the drivetrain.
In hobby-grade electric RC cars — especially 1/10 and 1/8 scale high-performance models — current demands are significantly higher than in entry-level or toy-grade vehicles. A substandard connector can cause noticeable voltage sag during hard acceleration, reduced top speed, excessive heat buildup at the connection point, and in worst cases, melted connectors or damaged ESCs. Brushless systems, which draw heavy current spikes, are particularly sensitive to connector quality. Choosing the right connector ensures stable power delivery, cooler operation, and consistent performance run after run.
The connector is the bridge between your battery and the rest of the power system. In high-performance RC cars, even small inefficiencies here can prevent your expensive battery and motor combination from delivering their full potential.
Different RC car scales, voltages, and power levels require different connector specifications. Here are the most widely used connectors in today's hobby-grade RC cars:

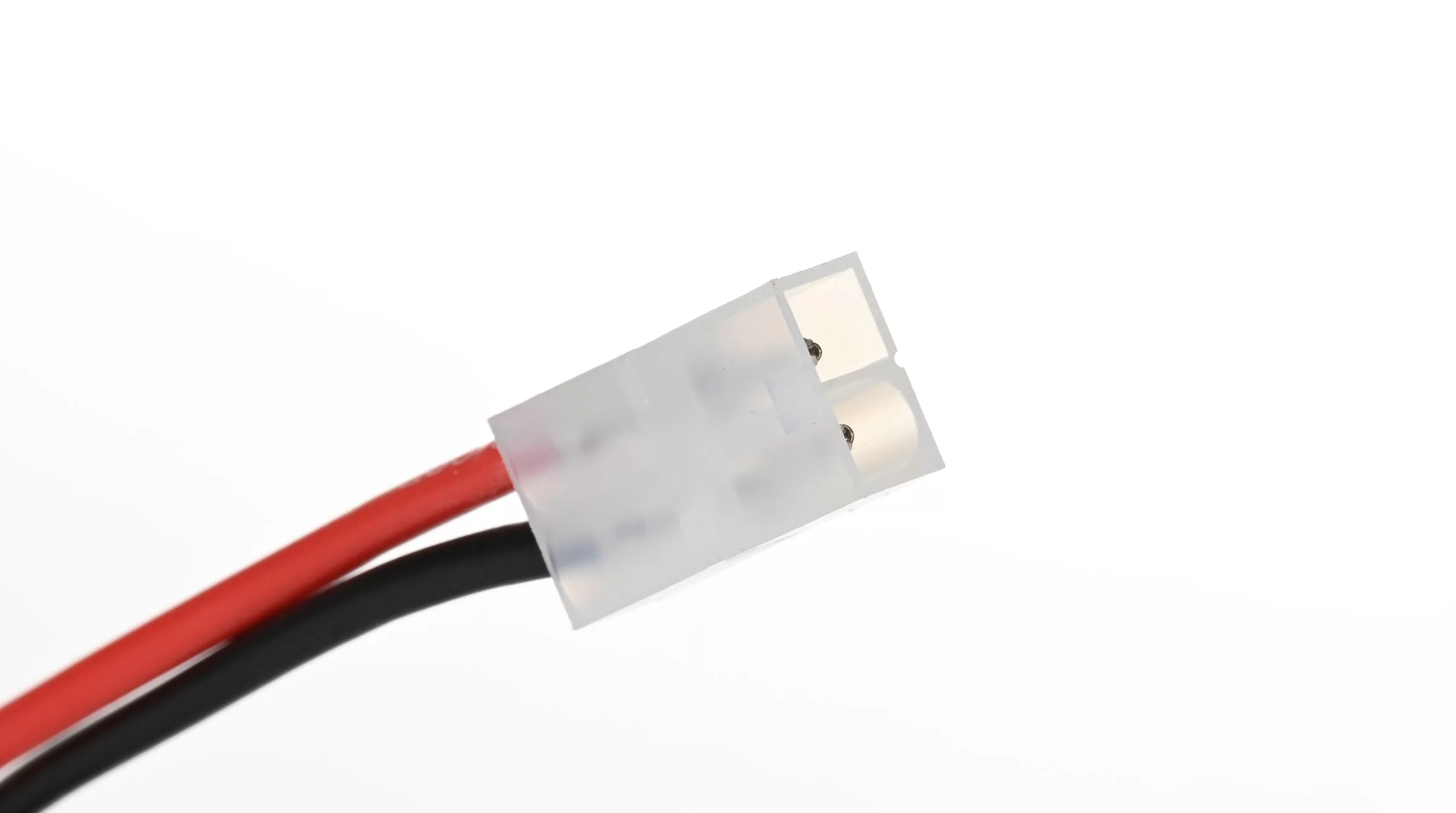

Tamiya connectors are among the oldest and simplest designs, commonly found in entry-level brushed RC cars and lower-power setups. They are inexpensive and easy to use but have relatively high resistance and limited current-carrying capacity. They are generally not recommended for modern brushless systems or high-discharge LiPo batteries due to overheating risks.
Deans connectors were once the standard for racing and mid-power applications. They are compact, offer good conductivity, and are still favored by some experienced racers for their low internal resistance. However, they can be more difficult to solder cleanly and are gradually being replaced by XT series connectors in newer designs.
XT60 has become the most popular connector for hobby-grade 1/10 scale RC cars. It offers an excellent balance of current capacity (around 60A continuous), easy soldering, secure fit, and widespread compatibility. XT60 is the go-to choice for most brushless 2S–3S setups in buggies, short course trucks, monster trucks, and rally cars. Its reliability and ease of use make it the standard recommendation for most hobbyists.
XT60 connector installed in hobby-grade RC car electronics
XT90 is designed for high-power applications, commonly used in 1/8 scale RC cars, large monster trucks, and 4S–6S LiPo systems. It handles significantly higher current than XT60 with better heat dissipation and more robust construction, making it ideal for demanding brushless setups where maximum power delivery is required.
The EC series features a secure locking mechanism and excellent vibration resistance. EC3 is suitable for 1/10 scale applications, while EC5 is preferred for high-power 1/8 scale and larger vehicles. They are known for reliable connections and are popular in off-road and competition vehicles.
Connector | Best For | Current Capacity | Popularity |
XT60 | Most 1/10 scale hobby-grade RC cars | Medium-High | Very High |
XT90 | 1/8 scale high-power vehicles | Very High | High |
Deans (T-Plug) | Legacy mid-power setups | Medium | Medium |
EC5 | High-performance off-road | Very High | High |
The best connector is the one that safely matches your RC car's power requirements. Consider motor power, ESC rating, battery C-rating, and overall vehicle scale. For most 1/10 scale brushless setups, XT60 is the ideal balance. For high-power 1/8 scale and larger vehicles, XT90 or EC5 provides better safety margin and heat management.
Adapters add extra resistance, heat, and potential failure points. While they can be used temporarily for compatibility, they are not suitable for sustained high-current applications. Standardizing on one reliable connector type (typically XT60 for 1/10 scale) is the professional approach used by most serious hobbyists and racing teams.
RC Car Type | Recommended Connector |
Beginner RTR RC Car | XT60 |
1/10 Brushless Buggy / Truck | XT60 |
1/8 Scale High-Power Vehicles | XT90 / EC5 |
Rock Crawler | XT60 |
As a professional manufacturer of hobby-grade RC cars, VRX Racing pays close attention to connector selection and power system design. Our platforms use industry-standard XT60 and XT90 connectors matched to each model's power requirements, ensuring reliable, efficient power delivery across our brushless electric RC car lineup. For OEM and distributor partners, we offer flexible customization including connector standardization, custom wiring layouts, and full electronics integration to meet different market needs.
Common mistakes include using undersized connectors for high-power systems, poor soldering technique, relying on cheap adapters for long-term use, loose connections, and ignoring heat buildup during runs. Always inspect connectors before driving and replace any that show signs of melting, discoloration, or looseness.
Although small, RC battery connectors play a critical role in performance, safety, and reliability. Choosing the right connector — typically XT60 for most 1/10 scale hobby-grade RC cars and XT90/EC5 for higher power applications — ensures stable power delivery and protects your expensive electronics. At VRX Racing, we design our hobby-grade electric RC cars with reliable, high-current connectors and robust power systems to deliver consistent performance for enthusiasts and strong product reliability for global distributors.
