The differential is a critical component for vehicle cornering dynamics. Without it, RC cars would lose control during turns due to unmatched wheel speeds. This article dissects its mechanics, functionality, and performance tuning strategies.

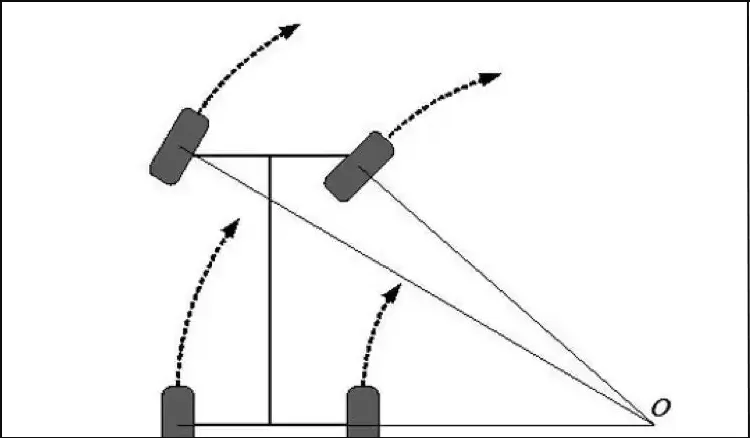

During cornering, the outer wheel travels a longer arc than the inner wheel (Fig 1). To maintain traction:
Outer wheel must rotate faster
A solid axle linkage would cause:
Driveshaft torsion failure
Tire scrubbing/rollover
The differential resolves this via a planetary gearset that dynamically distributes torque while permitting controlled speed differentiation.
A standard RC differential comprises:
Ring Gear: Input from driveshaft
Planetary Gears: Mounted symmetrically on a carrier
Side Gears: Linked to left/right axles
Straight-line driving:Planetary gears rotate with ring gear (no self-rotation), delivering equal torque to both wheels.
Cornering scenario (Left turn):
Left wheel resistance ↑ → Left side gear speed ↓
Planetary gears revolve + rotate → Right side gear speed ↑
Performance Enhancements for RC Racing
Standard differentials fail on low-grip surfaces (e.g., sand, ice):
Low-resistance wheel spins freely (100% power loss)
High-resistance wheel stalls → Vehicle stranded
Differential Lock:
Mechanically couples both axles for 100% torque transfer
Ideal for: Crawlers, high-traction tracks
Limited-Slip Differential (LSD):
Restricts speed differential via clutch plates/viscous coupling
Types: Mechanical, hydraulic, electronic
Pro Tip: Maintain competition differentials with precision gear replacements, track-specific fluids, and clutch preload checks for peak track performance.
