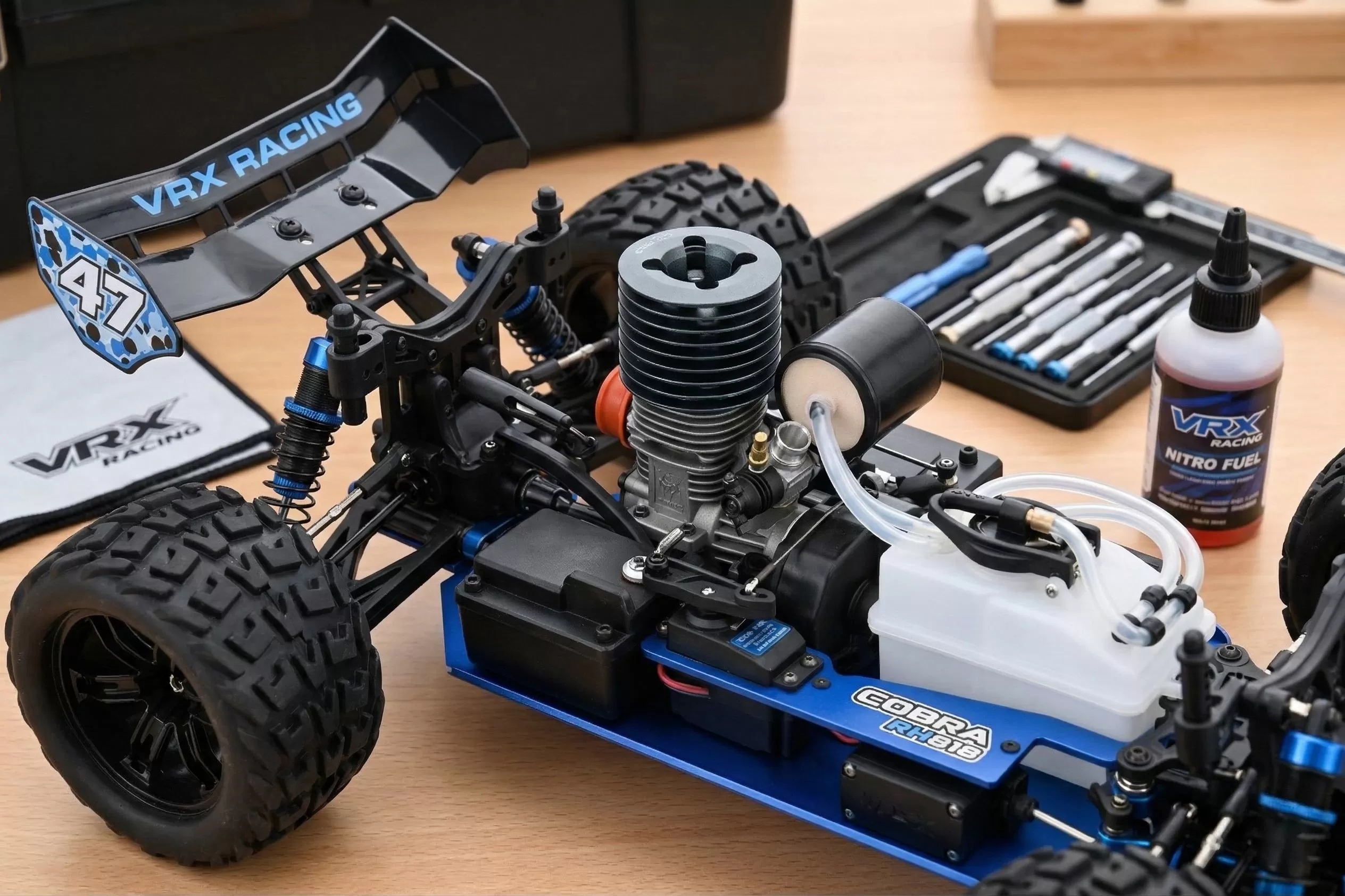

As a professional RC model car manufacturer, Vrx Racing, we know that for every RC enthusiast, the most exciting part of a nitro RC car isn't just the speed—it's the art of engine tuning. Whether you are driving our The New Nitro version COBRA or the classic RH1001, RH802 series, mastering the correct carburetor tuning process is key to keeping your racer at peak performance.
Today, we are providing a comprehensive, easy-to-understand nitro engine tuning guide based on industry-standard troubleshooting flowcharts.
Before you turn a screwdriver, ensure the following foundational conditions are met:
Factory Settings: Ensure the motor is set to factory specs.
Warm Up: The motor must be warm, including the chassis.
Inspect Parts: All parts (fuel lines, exhaust, glow plug) must be in working order.
Initial Carb Setting: Open the carb to a 1mm gap via the idle screw.
Note: Idle increases with clockwise rotation. The low-end and high-end mixes richen with counter-clockwise rotation and lean out with clockwise rotation.
Start your VRX Racing nitro engine and let it idle for 1 minute.
If the engine DOES NOT idle for minute:
Did the engine rev up before it died? This means it's running too lean. Adjust the low-end mix counter-clockwise 1/8 turn (rich).
Did the engine slow down and die? This means it's running too rich. Adjust the low-end mix clockwise 1/8 turn (lean).
If the engine successfully idles for minute: Proceed to Step.
In a clear, open area, accelerate at full throttle.
Does the engine suddenly bog or die? Adjust the high-end mix counter-clockwise 1/8 turn (rich).
Does the engine suddenly die or lose power? Look closely at the exhaust:
Is smoke visible and blue? Adjust the high-end mix clockwise 1/8 turn (lean).
Run some hot laps with your VRX Racing car (like the RH1072 or RH1055) and check the engine temperature. While ideal temperatures will vary by manufacturer, the general standards are:
Engine temp < 210°F? The engine is running too cold, which usually means it's too rich. Adjust the high-end mix clockwise 1/8 turn (lean), then run hot laps again.
Engine temp > 230°F? The engine is running too hot, which can shorten engine life. Adjust the high-end mix counter-clockwise 1/8 turn (rich), then run hot laps again.
Once your temperatures are stable (typically between 210°F and 230°F), we need to fine-tune the idle:
Do the wheels turn when idling? If yes, the idle is too high. Adjust the idle screw counter-clockwise 1/8 turn (decrease).
Rev the engine. Did the idle speed taper off? If yes, adjust the idle screw clockwise 1/8 turn (increase).
Does the engine die when the brakes are applied? If yes, your idle is too low or your linkage is off. Adjust the idle screw clockwise 1/8 turn (increase).
When your car idles smoothly, accelerates cleanly without bogging, and maintains a healthy temperature, congratulations—tuning is complete!We are dedicated to providing you with high-quality RC cars and professional technical support.
